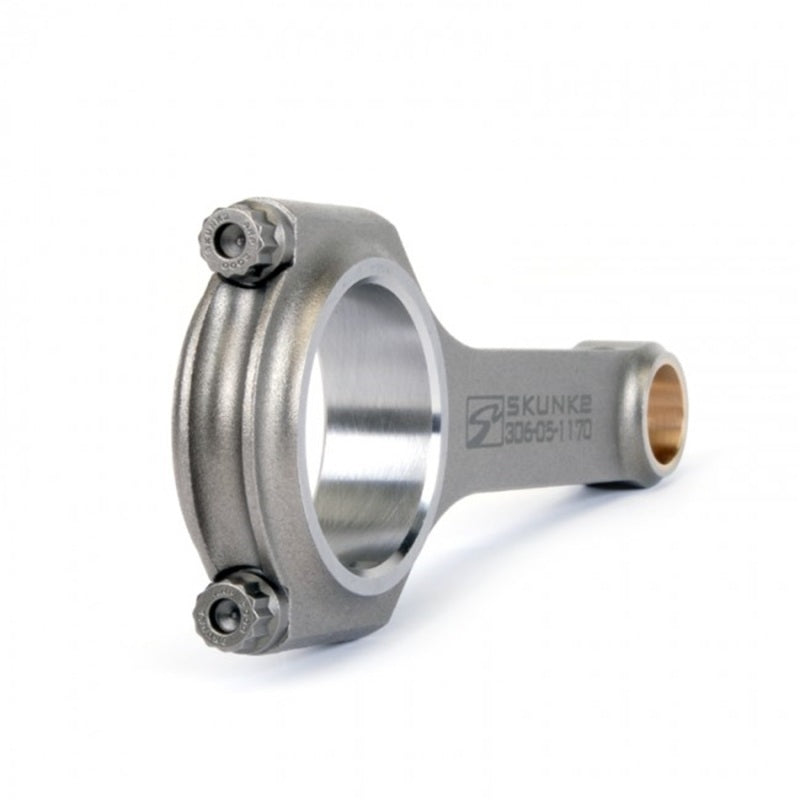

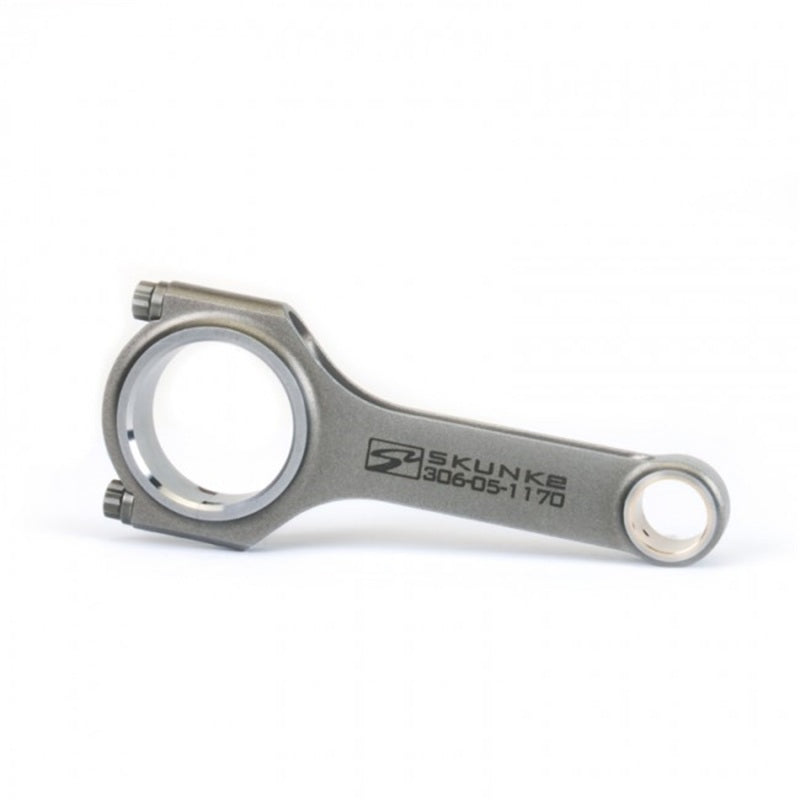

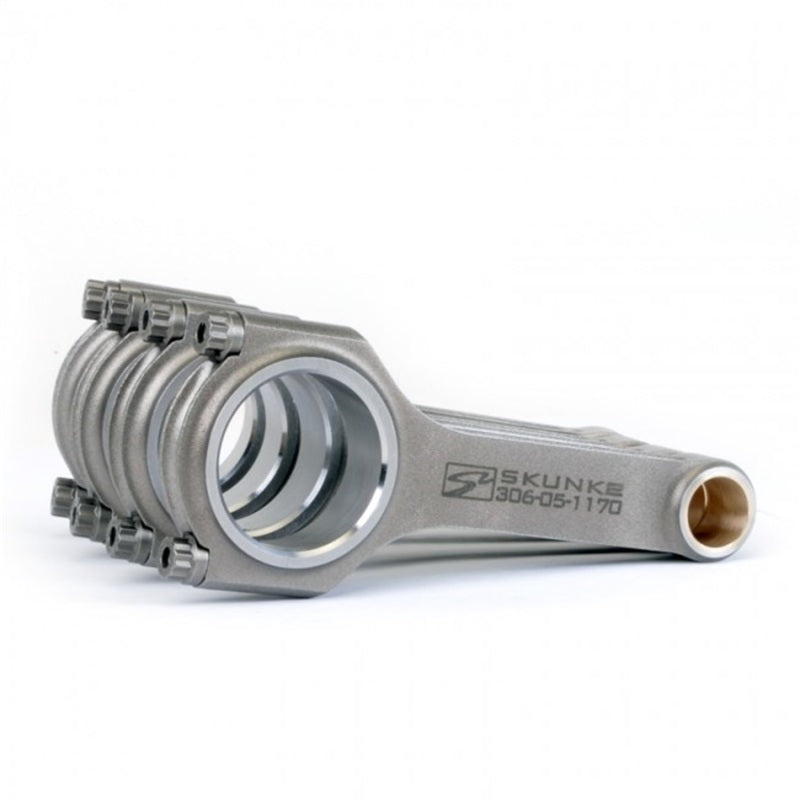

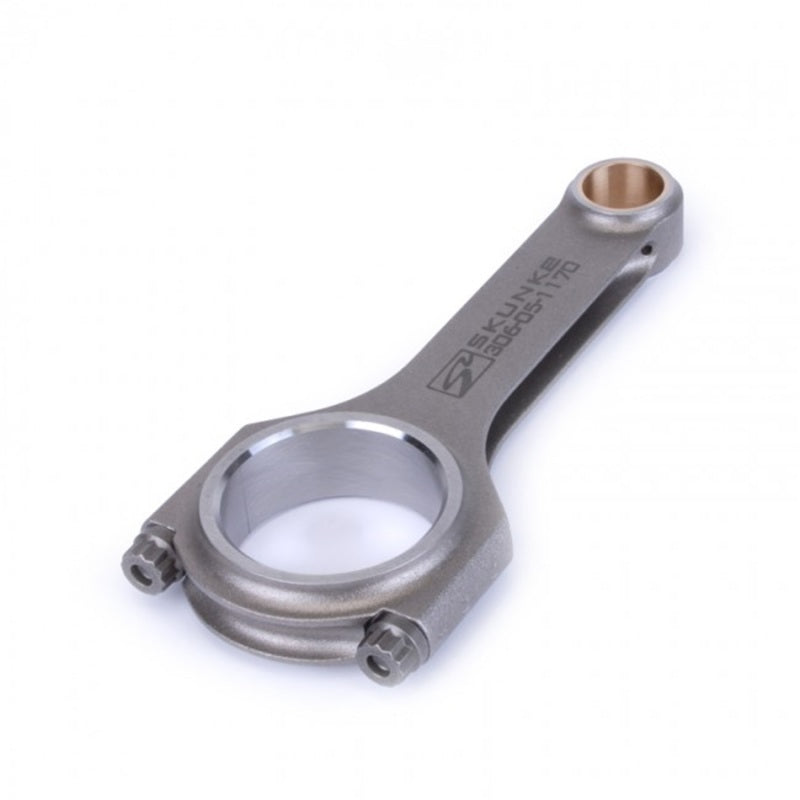

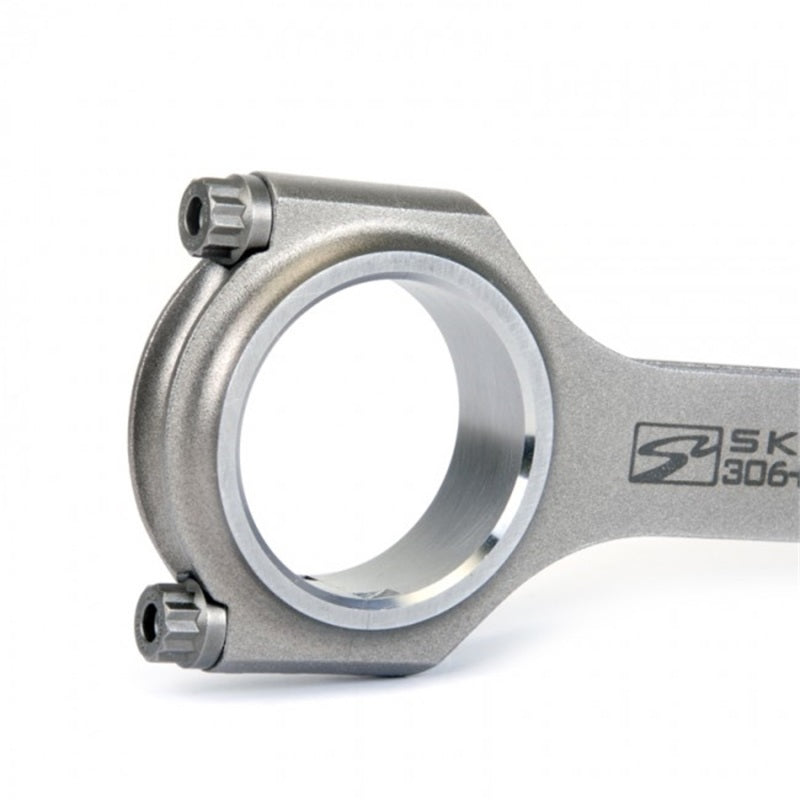

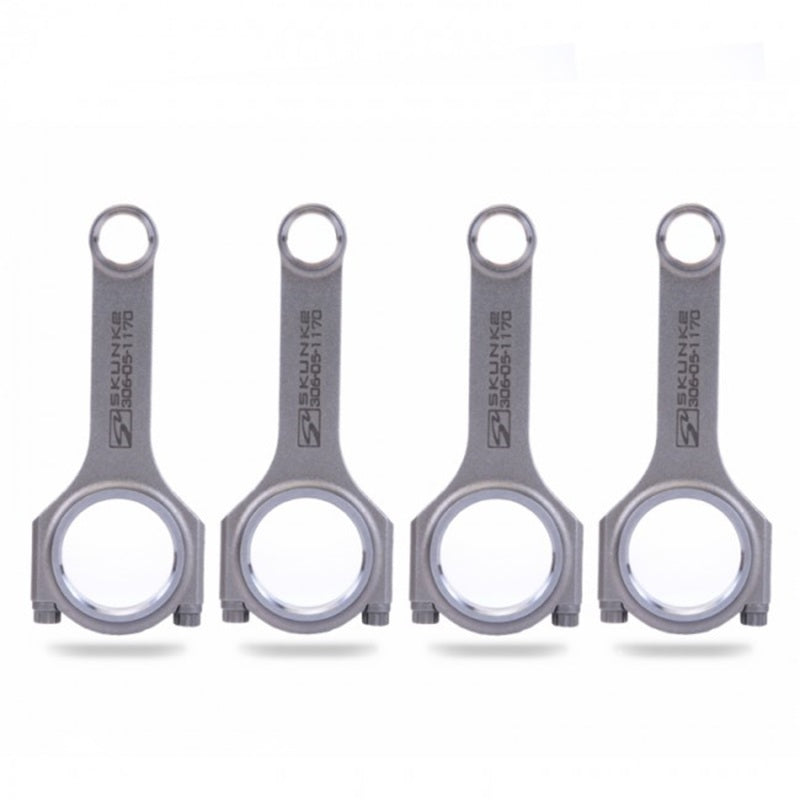

Skunk2 Alpha Series Honda H22A Connecting Rods
$471.44
Not sure it fits? Ask our fitment team — we check before it ships.
$471.44
$471.44
Tech Specs
- Brand
- Skunk2 Racing
- SKU
- SKK306-05-1170
- Manufacturer part number
- 306-05-1170
- Category
- Engine Components › Connecting Rods - 4Cyl
- Shipping weight
- 5.5 lb
- Availability
- Stocked
- EPA
- N/A
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2's rigid specifications.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2001 | Honda | Prelude | Base |
| 1997-2001 | Honda | Prelude | Type SH |
| 1993-1996 | Honda | Prelude | VTEC |
- Dual-Pin Oil Passages For Increased Lubrication And Strength
- Pin End Compatible w/Most Pistons w/o Machining
- Shot-Peened For Reduced Fatigue

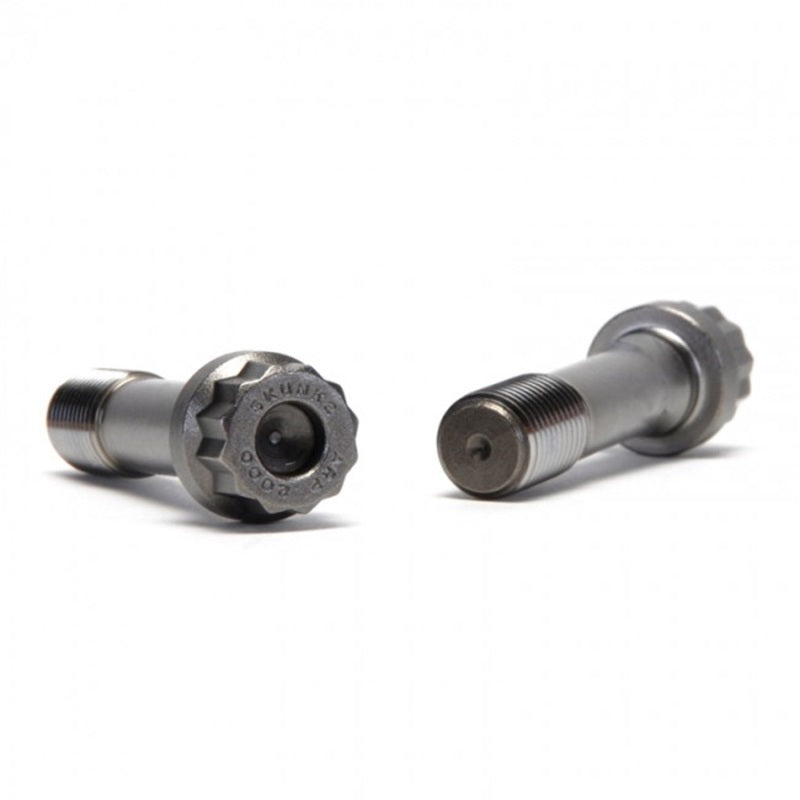

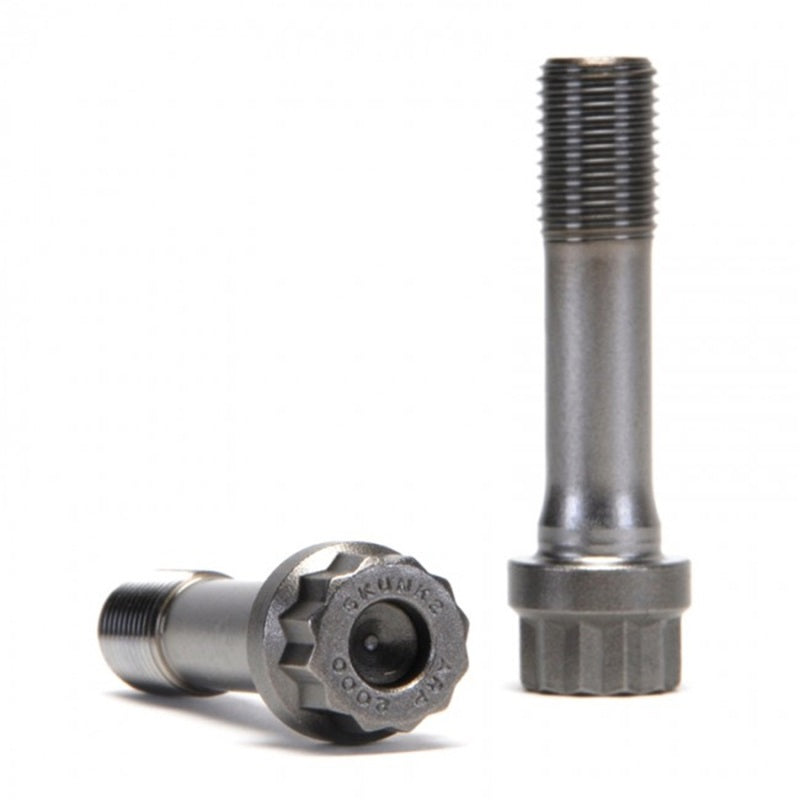

- 3/8-in. ARP2000/Skunk2 Bolts

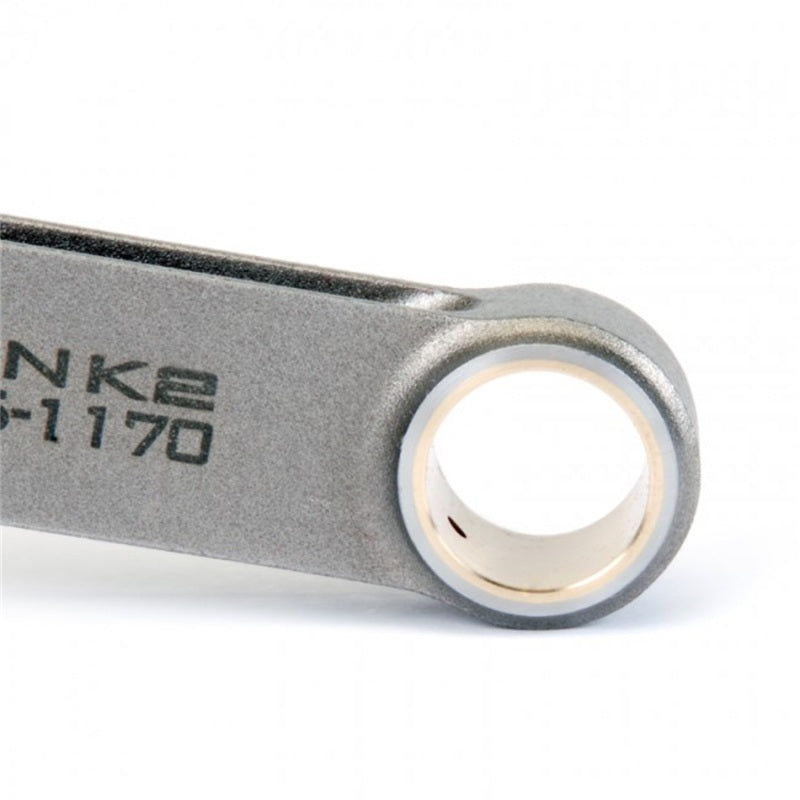

- Bronze Wrist Pin Bushings
- Magna-flux Inspected
- Balanced +/- 1 Gram
- Weight 540 grams
- Length 143.15mm
- 900+ HP Capable
- Heat Treated
- FEA Analyzed
