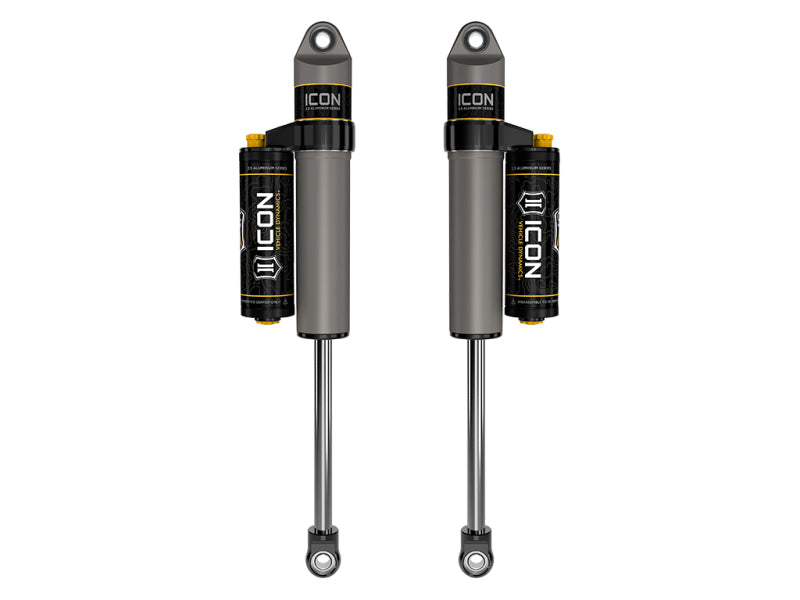

ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado 0-1in Rear 2.5 Series Shocks VS PB CDCV - Pair
$1,553.62
Not sure it fits? Ask our fitment team — we check before it ships.
$1,553.62
$1,553.62
Tech Specs
- Brand
- ICON
- SKU
- ICO77751CP
- Shipping weight
- 25.0 lb
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2023-2026 | Chevrolet | Colorado | LT |
| 2023-2026 | Chevrolet | Colorado | Trail Boss |
| 2023-2026 | Chevrolet | Colorado | WT |
| 2023-2026 | Chevrolet | Colorado | Z71 |
| 2023-2026 | GMC | Canyon | AT4 |
| 2023-2026 | GMC | Canyon | Denali |
| 2023-2026 | GMC | Canyon | Elevation |
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- PTFE lined spherical bearings and application specific mounting hardware
- 7/8” diameter induction hardened, chrome plated shock shaft
- Nitrogen charged monotube design with piggyback reservoir
- 6061 aircraft grade aluminum CNC machined components
- 100% Rebuildable
- 100% Revalveable
