Bilstein 2022+ Toyota Tundra / 23-24 Sequoia B8 6112 Front Suspension Kit - 0-3.1in Front Lift
$977.00
Not sure it fits? Ask our fitment team — we check before it ships.
$977.00
$977.00
Tech Specs
- Brand
- Bilstein
- SKU
- BIL47-329232
- Manufacturer part number
- 47-329232
- Category
- Suspension › Suspension Packages
- Shipping weight
- 59.9 lb
- Availability
- Stocked
- EPA
- N/A
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

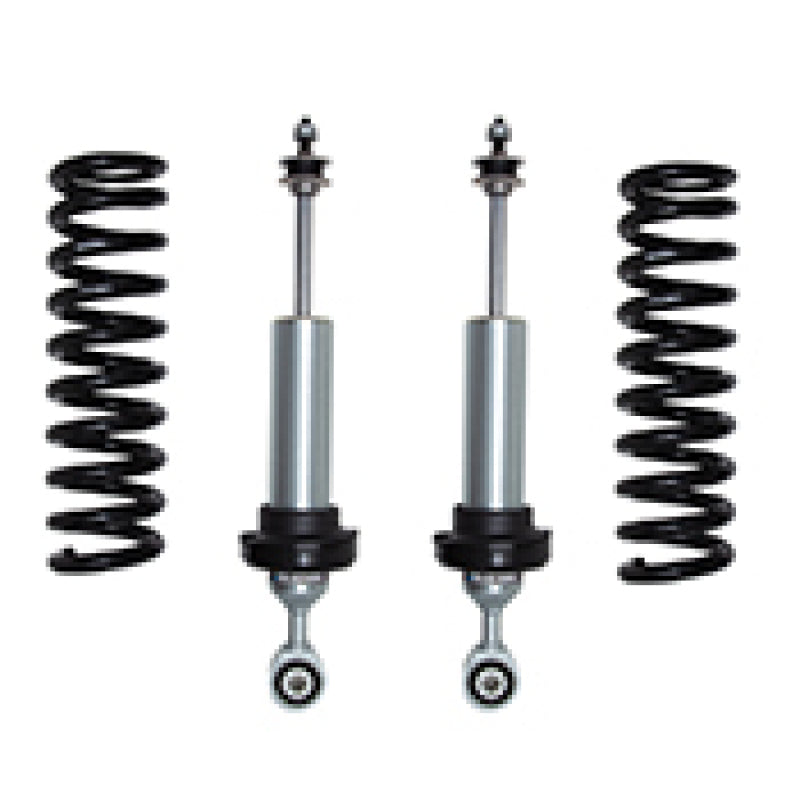

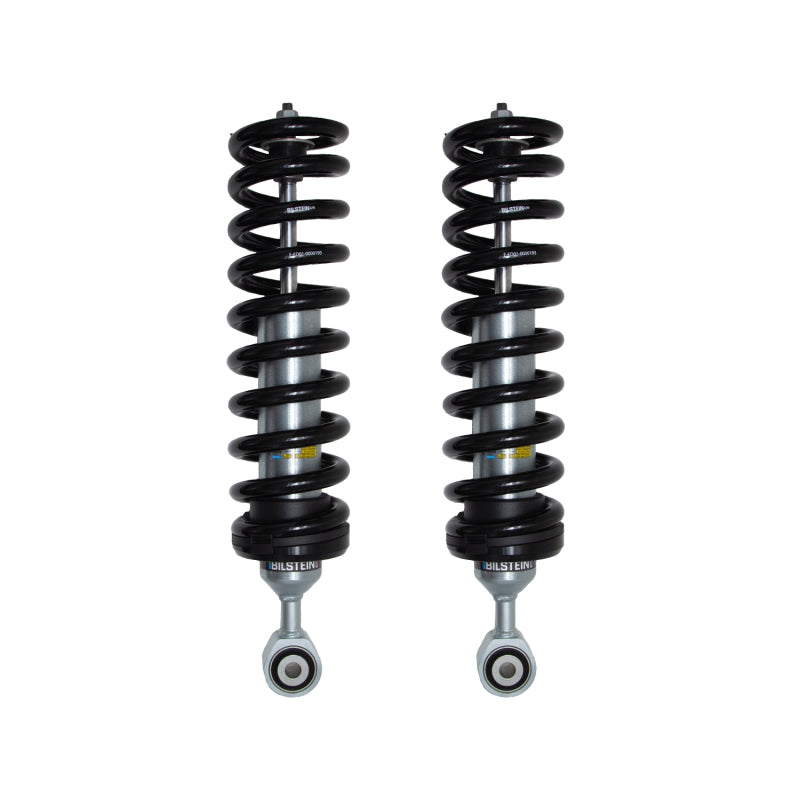

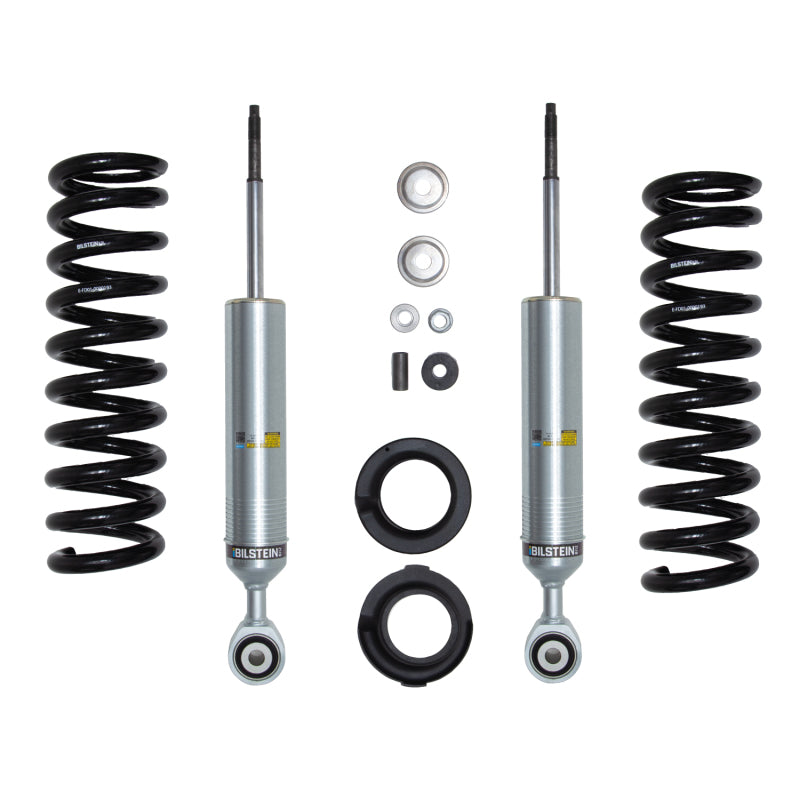

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2025-2026 | Toyota | Sequoia | 1794 Edition |
| 2023-2026 | Toyota | Sequoia | Capstone |
| 2023-2026 | Toyota | Sequoia | Limited |
| 2023-2026 | Toyota | Sequoia | Platinum |
| 2023-2026 | Toyota | Sequoia | SR5 |
| 2022-2026 | Toyota | Tundra | 1794 Edition |
| 2022-2026 | Toyota | Tundra | Capstone |
| 2022-2026 | Toyota | Tundra | Limited |
| 2022-2026 | Toyota | Tundra | Platinum |
| 2022-2026 | Toyota | Tundra | SR |
| 2022-2026 | Toyota | Tundra | SR5 |
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
