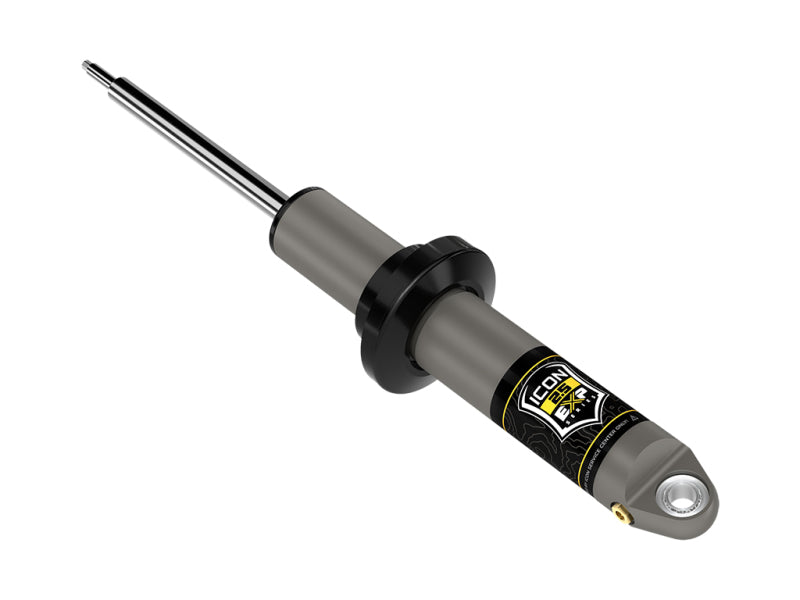

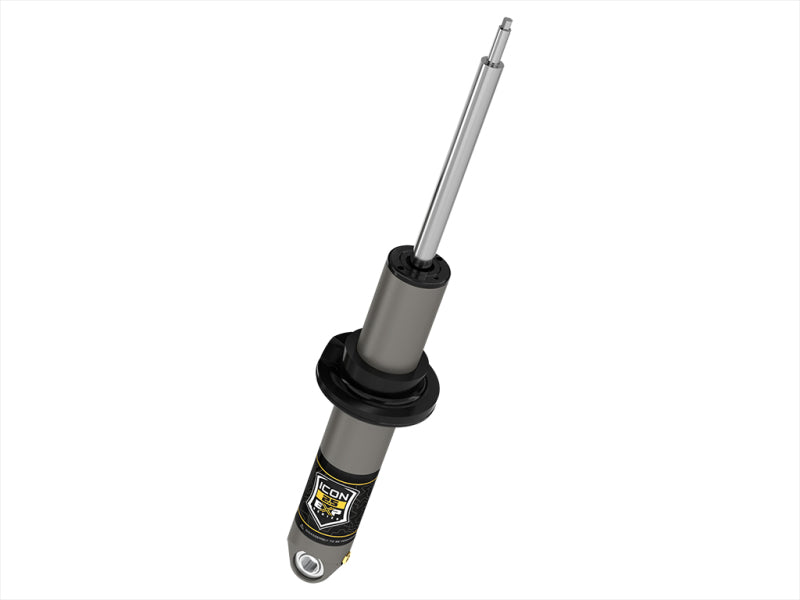

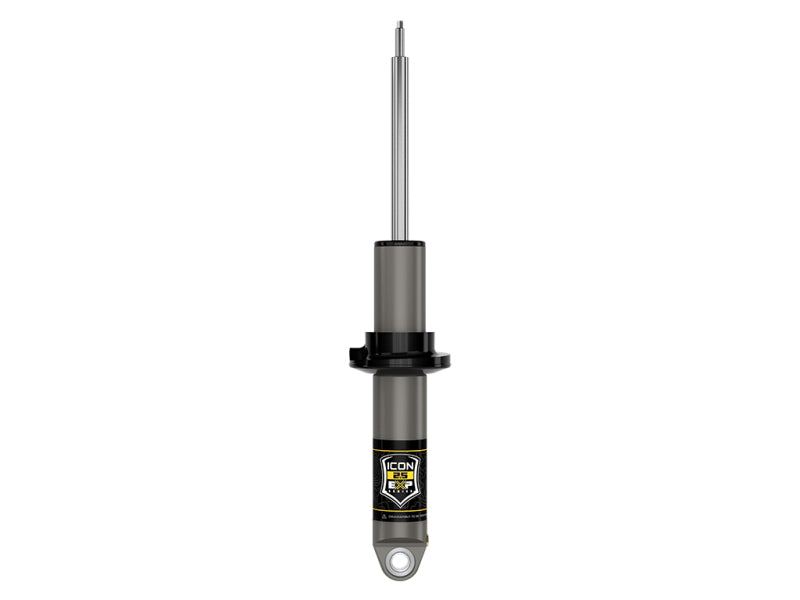

ICON 2021+ Ford Bronco Hoss 1.0 Rear EXP Coilover 2.5in
$535.55
Not sure it fits? Ask our fitment team — we check before it ships.
$535.55
$535.55
Tech Specs
- Brand
- ICON
- SKU
- ICO48611
- Manufacturer part number
- 48611
- Category
- Suspension › Shocks and Struts
- Shipping weight
- 10.5 lb
- Availability
- Stocked
- EPA
- N/A
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2023,2025-2026 | Ford | Bronco | Base |
| 2021-2026 | Ford | Bronco | Big Bend |
| 2021-2024 | Ford | Bronco | Black Diamond |
| 2021-2026 | Ford | Bronco | Outer Banks |

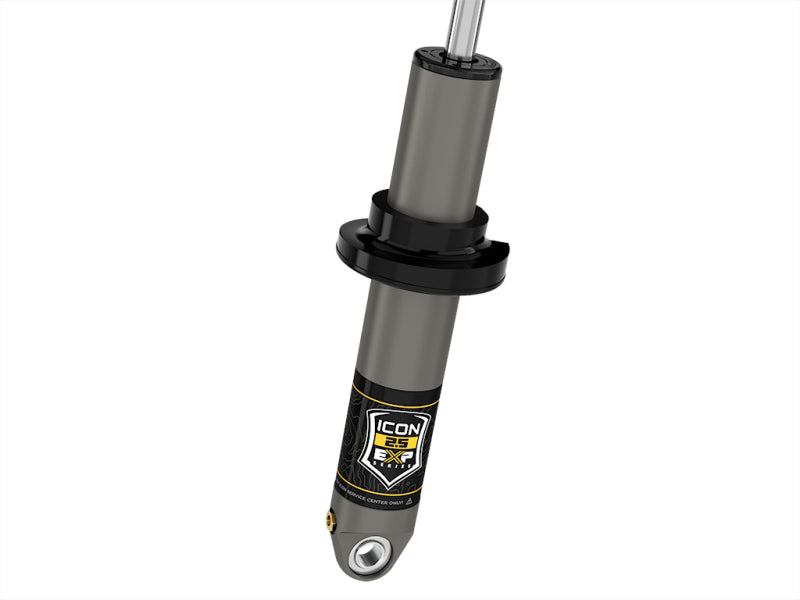

- One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- Adjustable ride heights from 1.5-2.25” of rear lift over stock with the use of snap ring
- Vehicle specific design for 2021-2026 Ford Bronco with HOSS 1.0 Suspension Package
- PTFE lined spherical bearing for extended longevity and minimal deflection
- CNC machined 6061 aluminum components with a black anodized finish

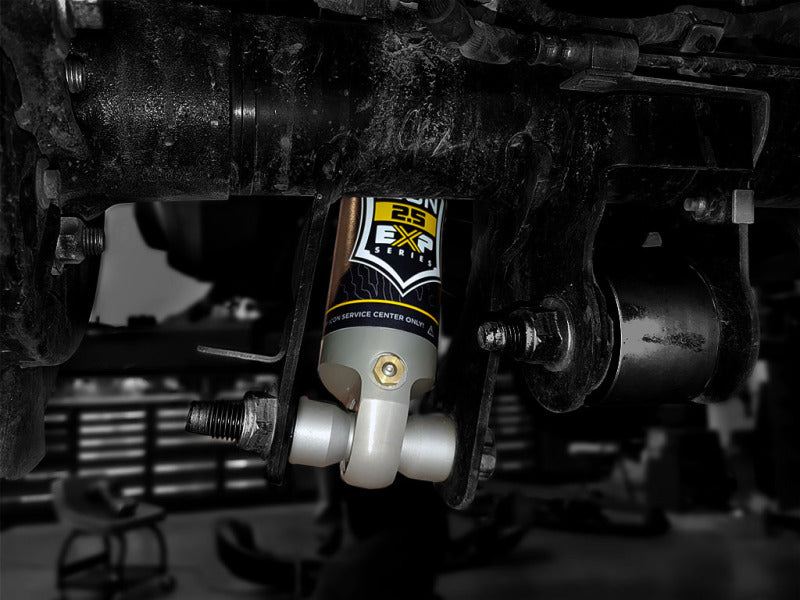

- 100% Bolt-on - no cutting or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- 2.5 Aluminum Series Shock with Internal Reservoir

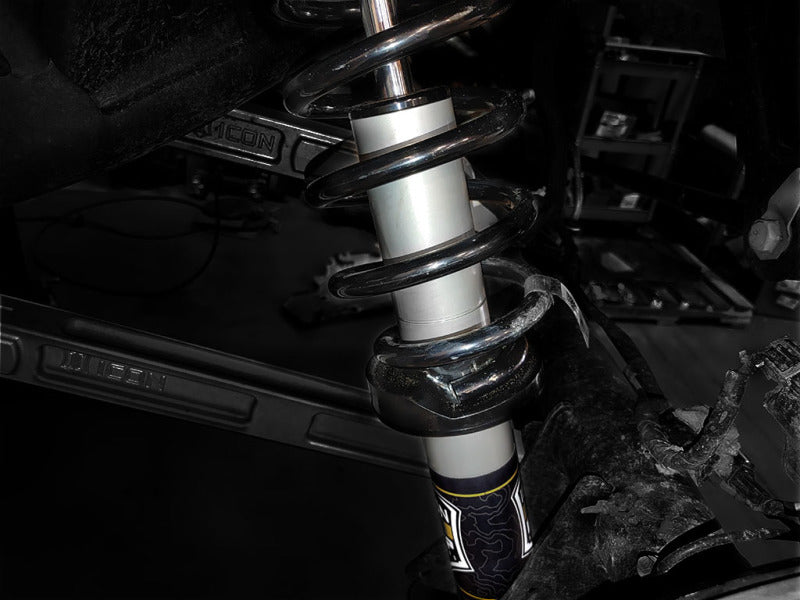

- Utilizes factory coil and coil hardware
- Fully rebuildable and re-tunable
