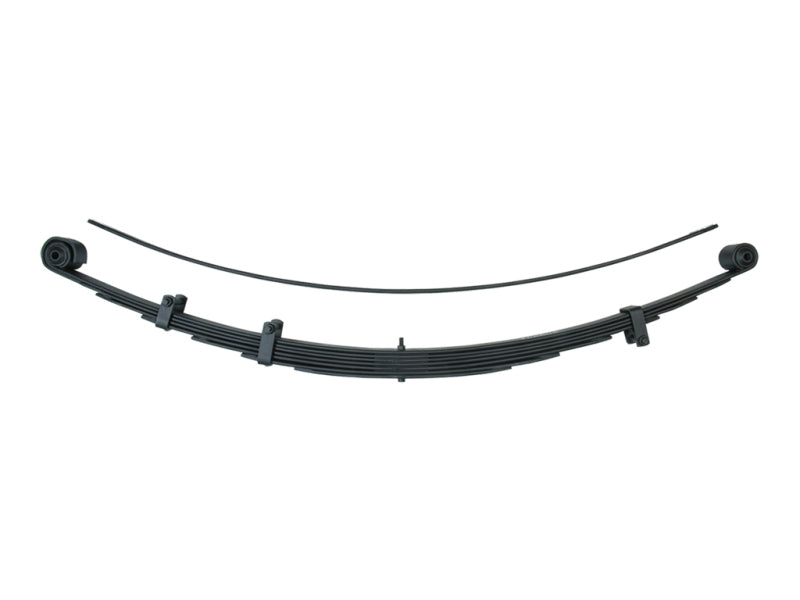

ICON 2005+ Toyota Tacoma Multi Rate RXT Leaf Pack w/Add In Leaf
$416.85
Not sure it fits? Ask our fitment team — we check before it ships.
$416.85
$416.85
Tech Specs
- Brand
- ICON
- SKU
- ICO158505
- Manufacturer part number
- 158505
- Category
- Suspension › Leaf Springs & Accessories
- Shipping weight
- 51.2 lb
- Availability
- Stocked
- EPA
- N/A
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
To take advantage of the additional travel that the RXT Rear Suspension System offers, ICON engineers had to scrap the OE leaf springs and develop a replacement that addressed issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Tacoma setup imaginable. Features like tip inserts and leaf separators reduce friction and increase ride comfort, while a military wrapped front eyelet improves the durability and strength of the leaf spring. To increase the ride quality of the truck and gain additional droop travel, the spring rate has been lowered slightly. While many Tacoma owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires and parts or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding an additional 10% or 20% spring rate that will handle more "outfitted" vehicles.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005-2015 | Toyota | Tacoma | Base |
| 2016-2023 | Toyota | Tacoma | Limited |
| 2005-2015 | Toyota | Tacoma | Pre Runner |
| 2016-2023 | Toyota | Tacoma | SR |
| 2016-2023 | Toyota | Tacoma | SR5 |
| 2021 | Toyota | Tacoma | Trail |
| 2023 | Toyota | Tacoma | Trail Special Edition |
| 2016-2023 | Toyota | Tacoma | TRD Off-Road |
| 2015,2017-2023 | Toyota | Tacoma | TRD Pro |
| 2016-2023 | Toyota | Tacoma | TRD Sport |
| 2005-2013 | Toyota | Tacoma | X-Runner |
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Includes additional leaf with 15% or 25% increase in spring rate for more laden "outfitted" vehicles
- Potential for increased wheel travel (when used with RXT shock) without sacrificing up-travel
- Galvanized leaf separators reduce friction and aid in corrosion resistance

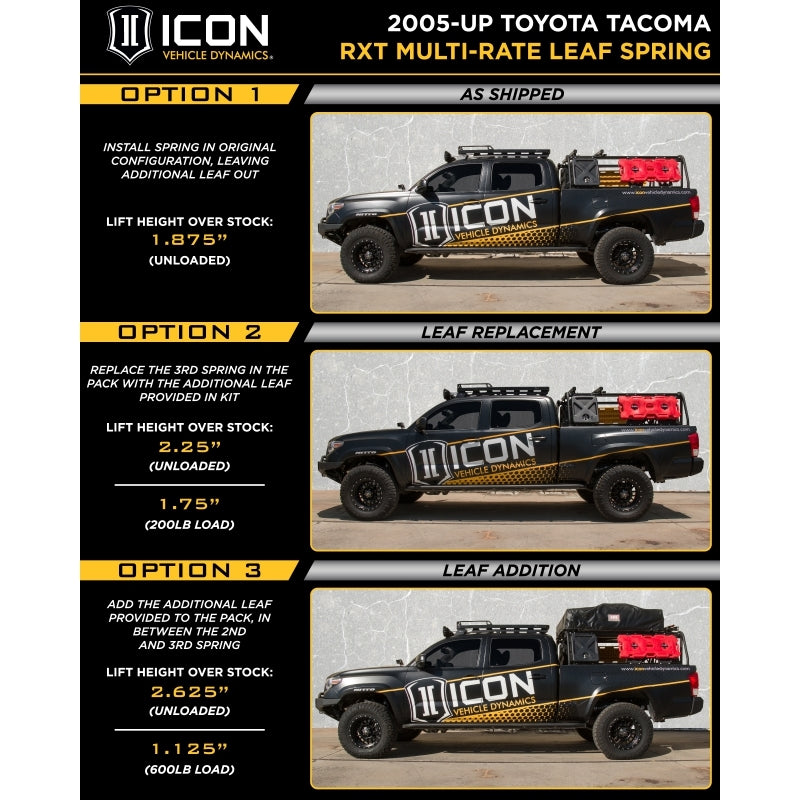

- 3 user-adjustable spring rates for unique vehicle configurations
- Direct bolt-in to OEM spring location makes for an easy install
- Leaf tip inserts reduce noise and increase ride comfort
- Military wrap front eyelet for increased durability
