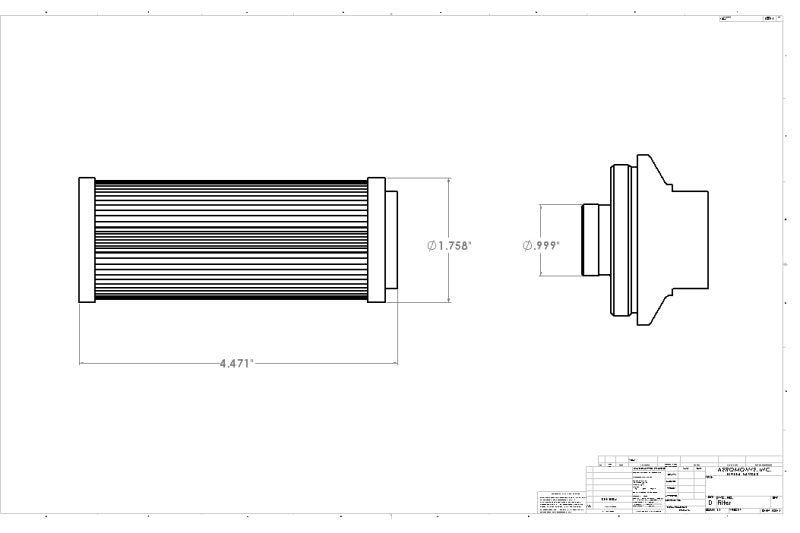

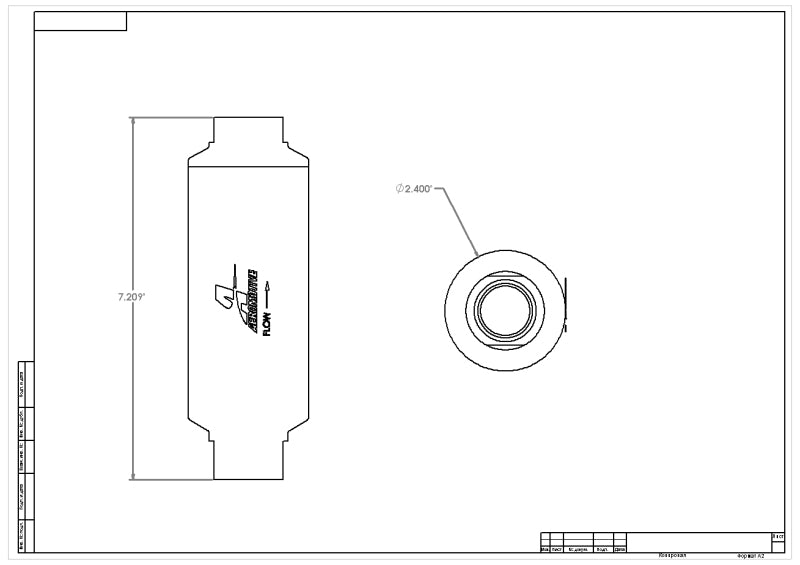

Technical Drawing
User 9
Technical Drawing

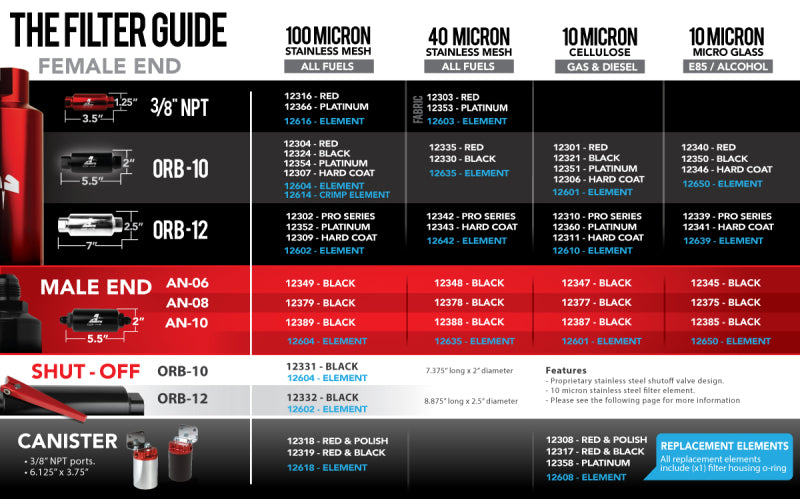

Application Guide
Photo - in package
Photo - out of package
Logo Image
Logo Image

Aeromotive

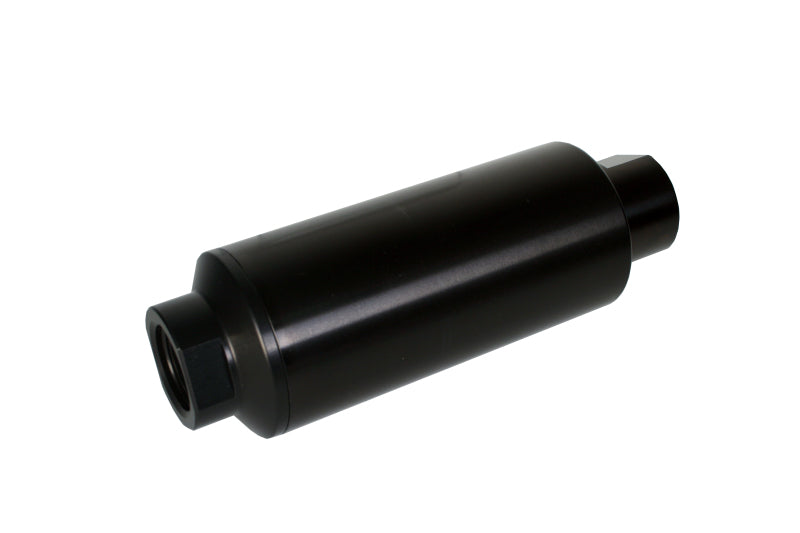

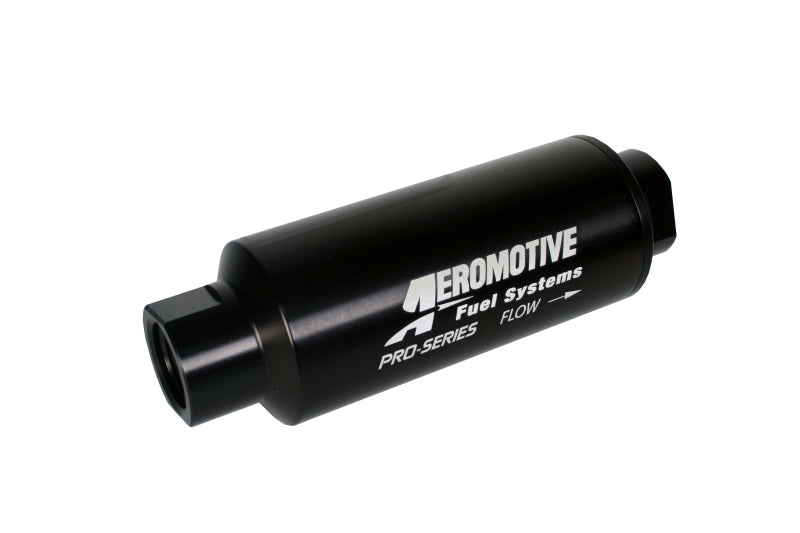

Aeromotive Pro-Series In-Line Fuel Filter - AN-12 - 100 Micron SS Element

SKU: AER12302
Barcode: 684980000351

$291.51

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Not sure it fits? Ask our fitment team — we check before it ships.

Authorized dealer — genuine parts only

Ships from our US warehouse

Fitment guaranteed or we take it back
Aeromotive Pro-Series In-Line Fuel Filter - AN-12 - 100 Micron SS Element

$291.51

$291.51

Tech Specs

Brand
Aeromotive
SKU
AER12302
Shipping weight
1.6 lb
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. High-flow, 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than .15 PSI. ORB-12 ports. Fittings available to adapt these filters to AN-12,?-10 line sizes. Pro-Series filters feature an indestructible electroless nickel finish.
