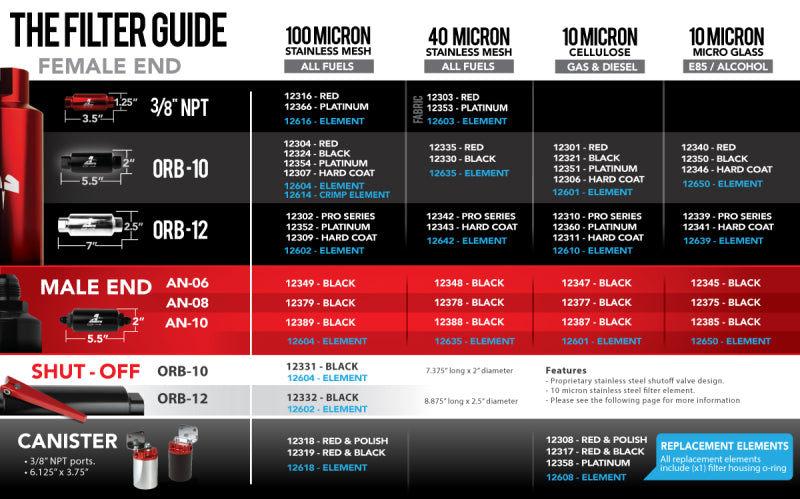

Application Guide

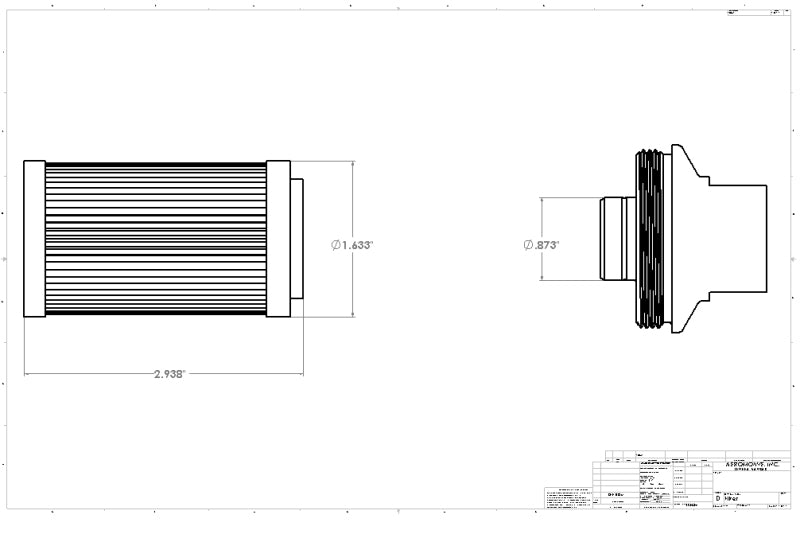

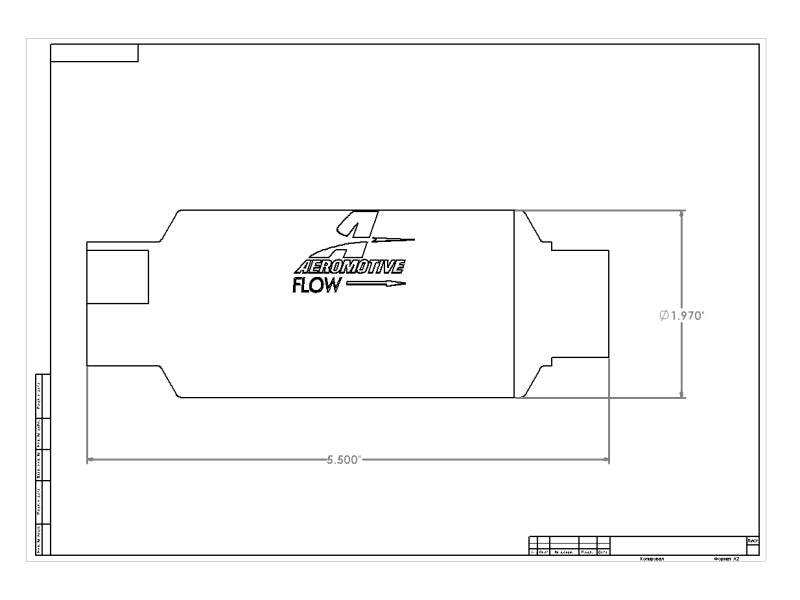

Technical Drawing
Technical Drawing
Logo Image
Logo Image

Aeromotive

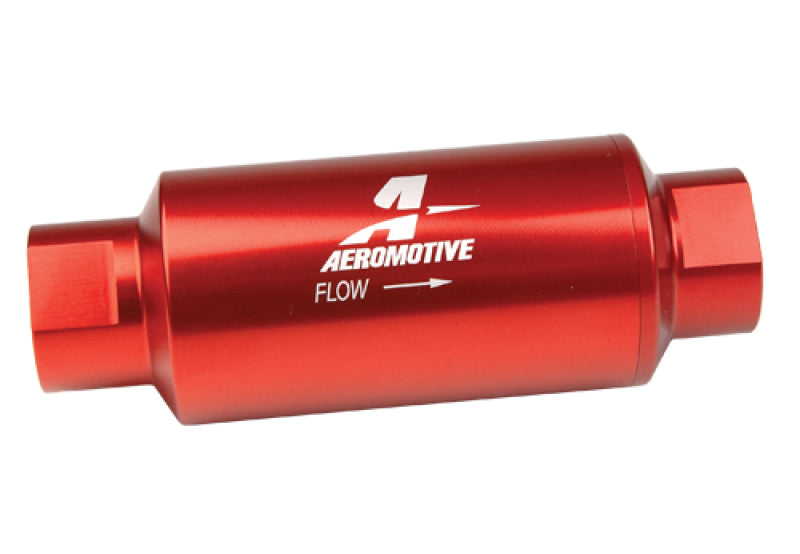

Aeromotive In-Line Filter - (AN-10) 10 Micron fabric Element

SKU: AER12301
Barcode: 684980000030

$140.33

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Not sure it fits? Ask our fitment team — we check before it ships.

Authorized dealer — genuine parts only

Ships from our US warehouse

Fitment guaranteed or we take it back
Aeromotive In-Line Filter - (AN-10) 10 Micron fabric Element

$140.33

$140.33

Tech Specs

Brand
Aeromotive
SKU
AER12301
Shipping weight
0.6 lb

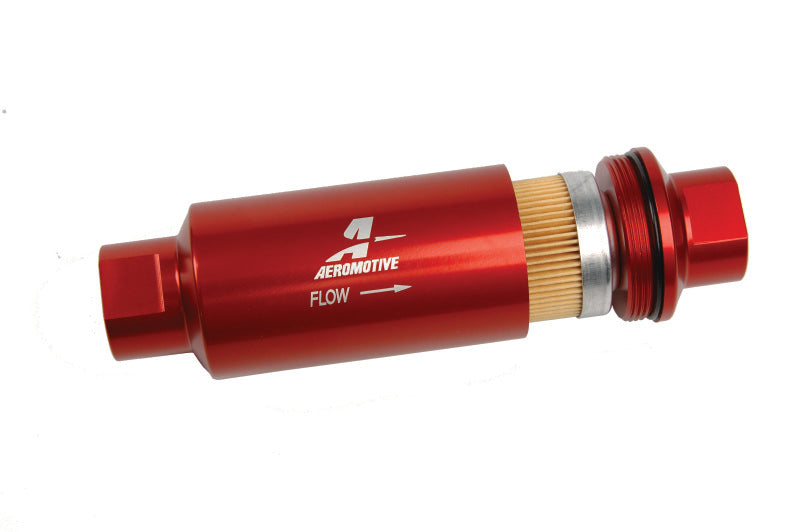

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. High-flow, 10-micron fabric (fine) replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 1 PSI. Compact size: 5.5" long x 2" diameter. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes.? All filter assemblies feature an O-ring for positive sealing in high pressure applications. CNC-machined from 6061-T6 aircraft aluminum. Bright dip red anodized finish for a corrosion resistant, show car quality appearance.
