AEM X-Series Temperature Gauge Accessory Kit
$23.18
Not sure it fits? Ask our fitment team — we check before it ships.
$23.18
$23.18
Tech Specs
- Brand
- AEM
- SKU
- AEM30-0302-ACC
- Shipping weight
- 0.05 lb

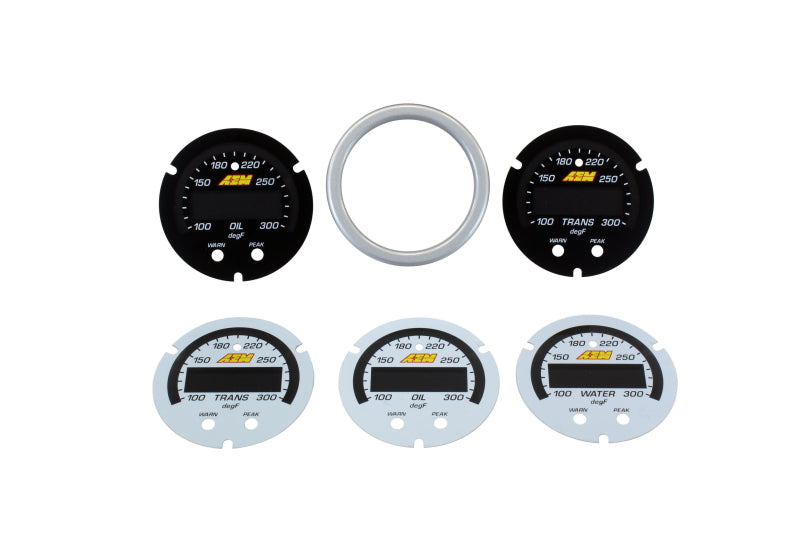

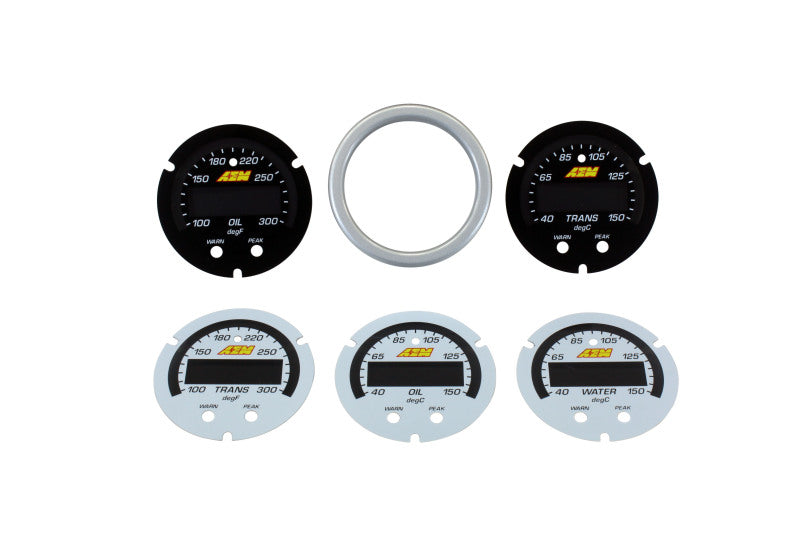

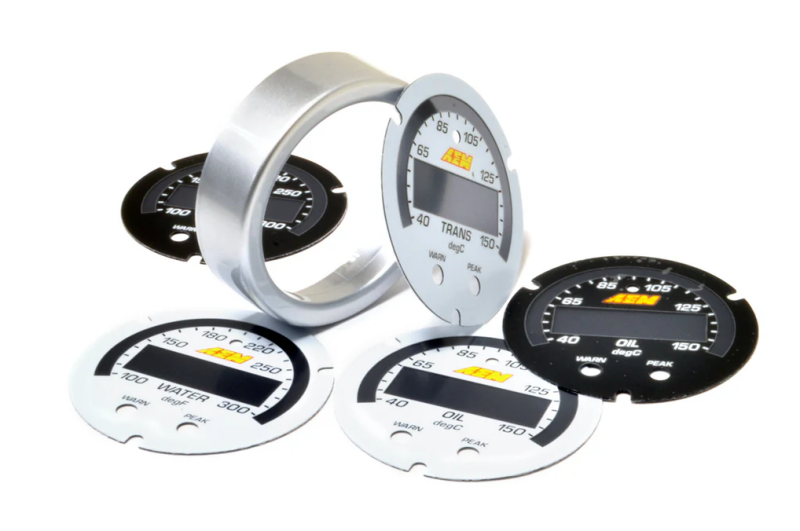

X-Series Temperature Gauge 100-300F - 40-150C Accesory Kit, Silver Bezel, Black Transmission and Oil Faceplates, White Water, Transmission and Oil Faceplates
- Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
- AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
- User selectable standard or metric display (100-300 F/40-150 C)
- 0-5v analog outputs for transmitting data to EMS or Data Logger
- 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
- Programmable center LED is 87% larger than original AEM gauges
- 24 green outer LEDs for quick reference to engine parameter
- Auto dimming sensor delivers ideal display brightness
- Positive locking connectors provide secure connection
- Peak/Recall via gauge face buttons
- User selectable threshold warnings
- Silver bezel/white gauge option
