AEM 8 Channel K-Type Thermocouple EGT CAN Module
$519.95
Not sure it fits? Ask our fitment team — we check before it ships.
$519.95
$519.95
Tech Specs
- Brand
- AEM
- SKU
- AEM30-2224
- Shipping weight
- 0.4 lb
8-Channel K-Type Thermocouple EGT/Temperature Sensor Module with CANbusconnectivity, includes CAN Module, DTM connector plug, Velcro tab for mounting and instructions.
- Pre-configured AEMnet CAN bus for plug & play connection to CD Digital Dashes, Infinity ECUs, and AQ-1 (not compatible with Series 2 ECU at this time)

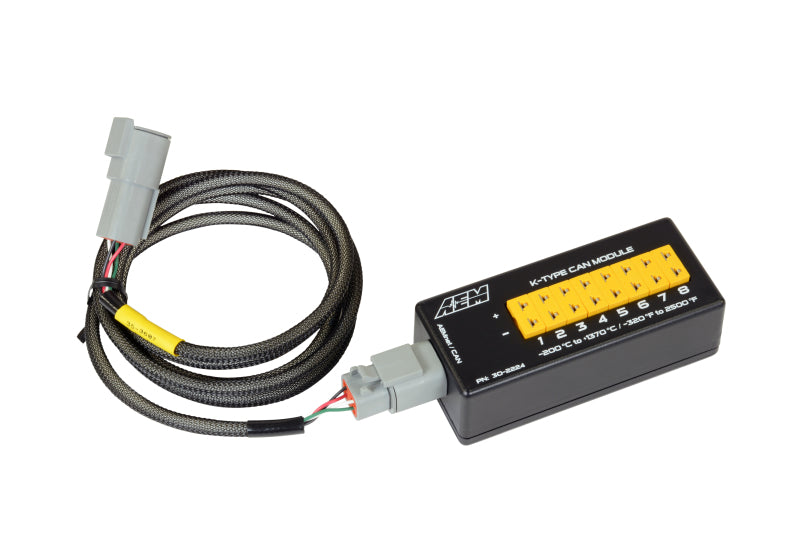

- Outputs all channels via configurable CAN bus via one-plug connection (DTM-style Connection Cables sold separately in various lengths)

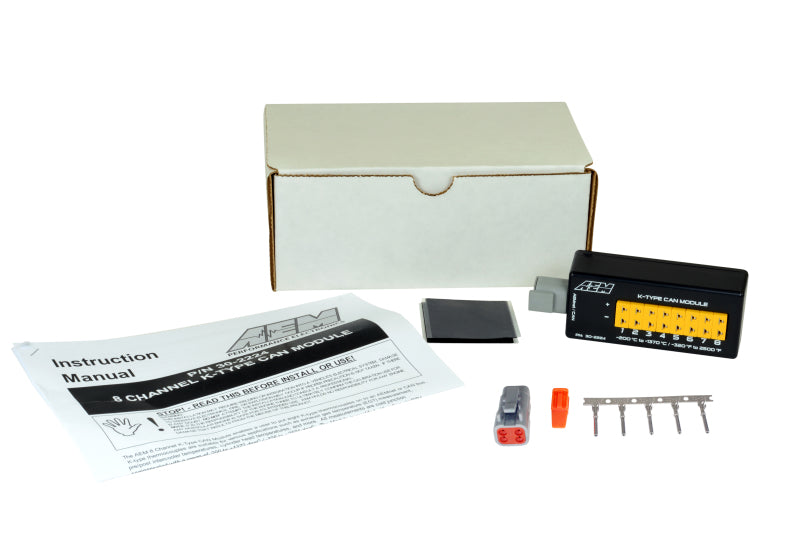

- Includes 8-Channel K-Type EGT CAN Module, 4-Pin DTM-style Connector Plug, instructions and Velcro for in-vehicle mounting

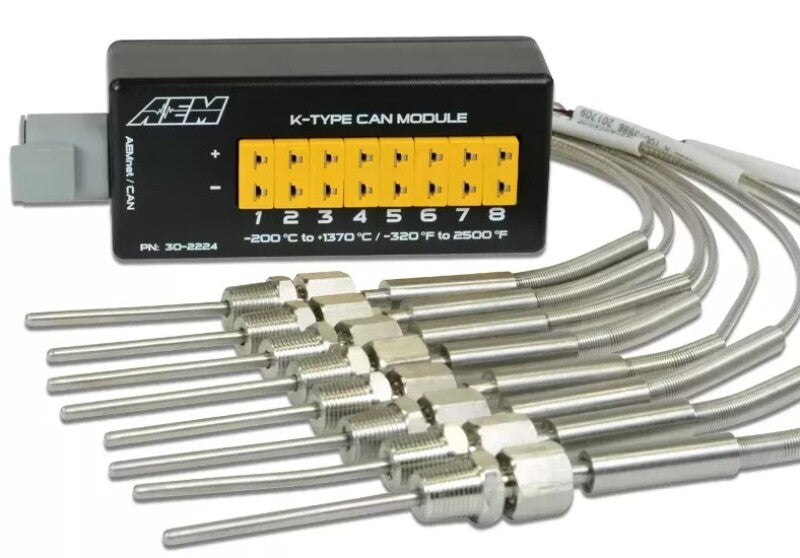

- Includes 8 K-type thermocouple inputs to accept common K-type thermocouple sensors (sensors sold separately)
- Daisy-chain two modules together for up to 16 temp inputs through a single plug!
- Cold junction compensated for lab-grade accuracy (+/- 0.15% full scale)
- Measures temperatures from -200 to 1372 degC (-328 to 2501 degF)
- Temperature resolution 0.1 degC (0.18 degF)
- Uses common miniature thermocouple sockets
- Integrated open circuit/fault detection
