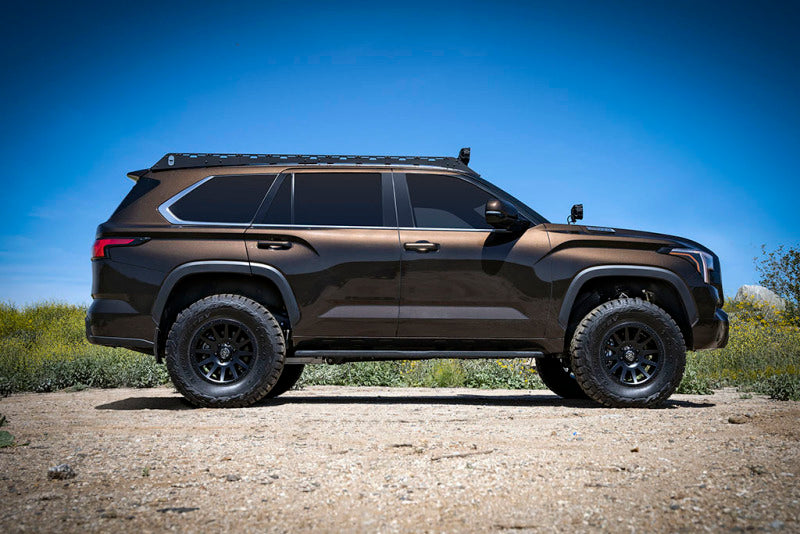

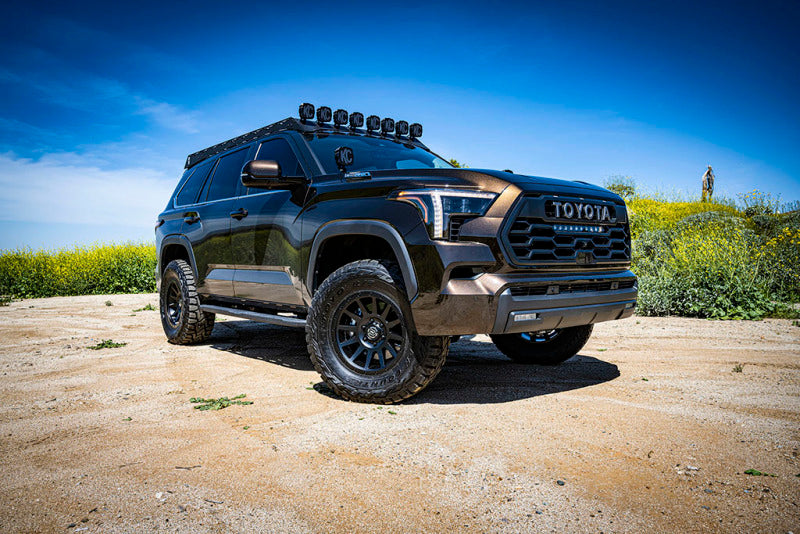

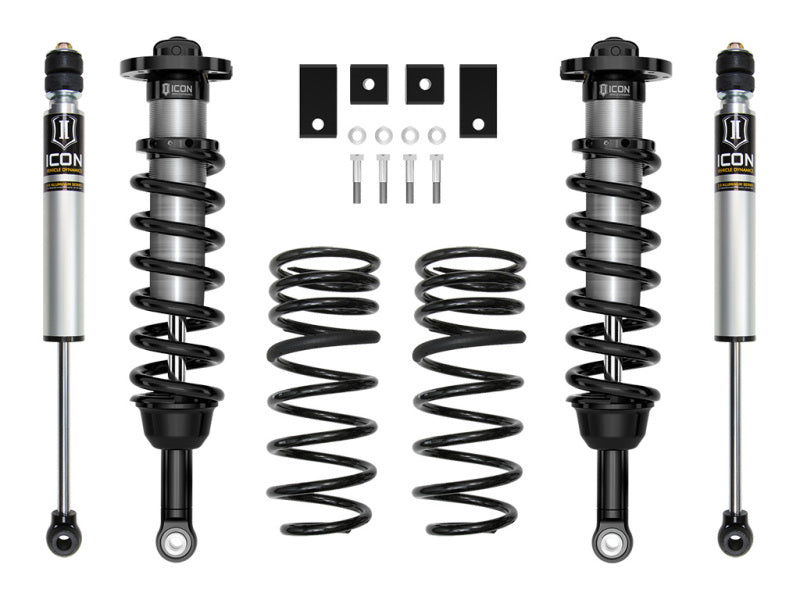

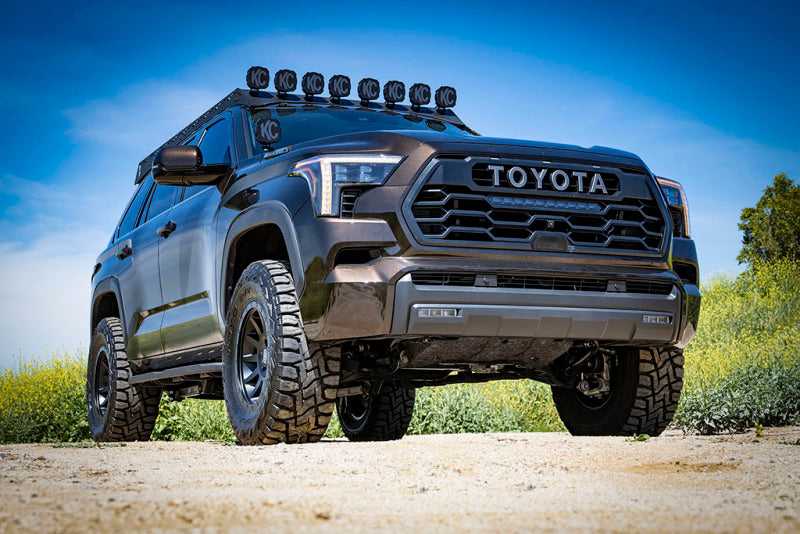

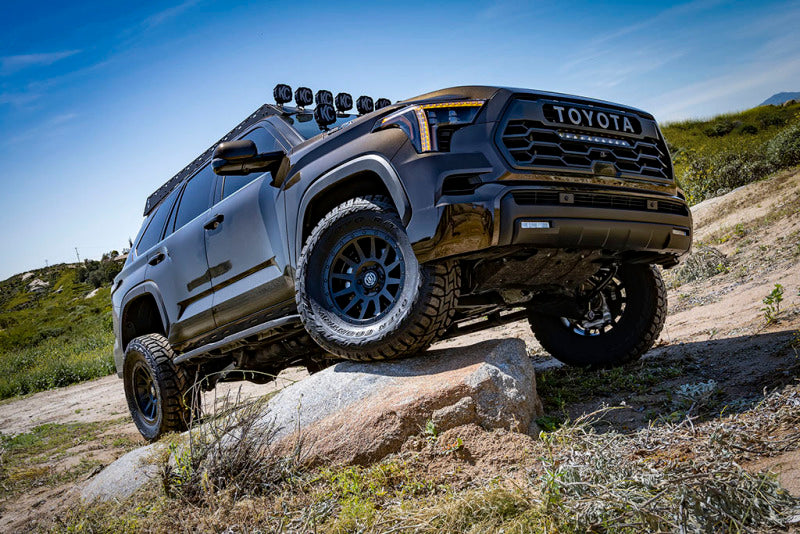

ICON 23-24 Sequoia 3-3.75in Stage 3 Suspension System
$2,605.38
Not sure it fits? Ask our fitment team — we check before it ships.
$2,605.38
$2,605.38
Tech Specs
- Brand
- ICON
- SKU
- ICOK53233
- Manufacturer part number
- K53233
- Category
- Suspension › Coilovers
- Availability
- Stocked
- EPA
- N/A
This Stage 3 system features the 2023-2026 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 3-3.75” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2025-2026 | Toyota | Sequoia | 1794 Edition |
| 2023-2026 | Toyota | Sequoia | Capstone |
| 2023-2026 | Toyota | Sequoia | Limited |
| 2023-2026 | Toyota | Sequoia | Platinum |
| 2023-2026 | Toyota | Sequoia | SR5 |
| 2023-2026 | Toyota | Sequoia | TRD Pro |
- Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Adjustable front ride heights from 3-3.75” of front lift over stock when used with stock UCAs

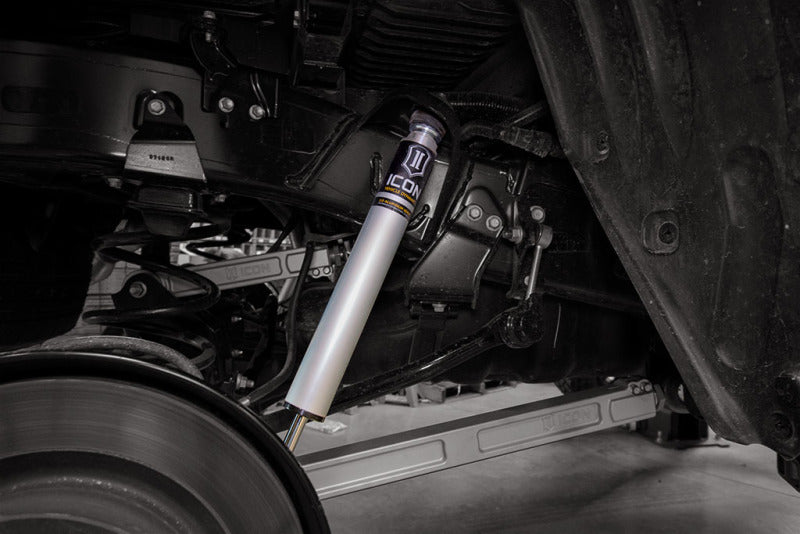

- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- All ICON shock absorbers are fully rebuildable and re-tunable
- Vehicle specific design for 2023-2026 Toyota Sequoia
